Instructions for competitors in MTBO
emiTag

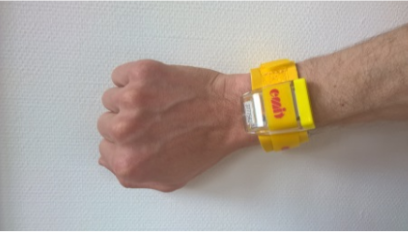

As an athlete you will be equipped with an emiTag. Strap the tag around your wrist with the supplied band.
During WOC and other TV broadcasted events, you may be assigned two emiTags. Both emiTags should be mounted on the same wrist. The reason that you are using two emiTags is mostly for your own safety to avoid hardware failure / hardware breakage (crushed against a stone for example) or loss of radiotransmitted punches due to many athletes passing at the same time.
In speed the punching is performed by holding the emiTag 0-100 cm above the control for a short moment. The LED light in the emiTag will start flashing, and keeps flashing for 5 seconds after the punch.
NOTE! It is important to see this flashing, since this is the only feedback telling you that the punch is performed correctly!
emiTags with a number lower than 3 731 640 must be replaced or battery must be replaced in 2020. For more information http://emit.no/en/product/emitag-timing-chip-157
If the battery voltage is lower than 2.95V the emiTag must be replaced before start.
Instruction videos on how to punch
Click on the below videos to get instructions on how to punch
Controls (Touch-Free PRO Longrange)
The controls are of the type Touch-Free PRO Longrange.
Punching range when standing still is 150cm. The range is reduced when punching in high speed.
On WOC there should be two control units at the control site.
The punching-field is strongest in front of the control when it is mounted vertically. Try to punch by holding the emiTag in front of the control and not against the side of it! This is the most efficient punching technique!
Do NOT touch the control unit when punching

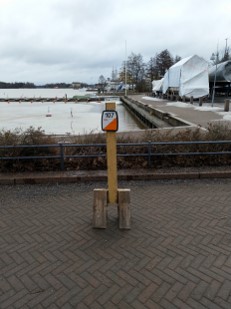

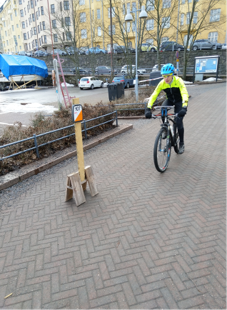

Example of control stand:
START
Touch-Free Start PRO. Hold your emiTag up to the starting unit to “zero/clear” the emiTag (normally 2 minutes before the start but exact position for clear depends on the organizer process).
When zeroing the emiTag (holding it against the TFP start) The LED light in the emiTag will start flashing, and keeps flashing for 5 seconds after the punch at the start unit. This is a verification for the organizers that the emiTag is working.
FINISH

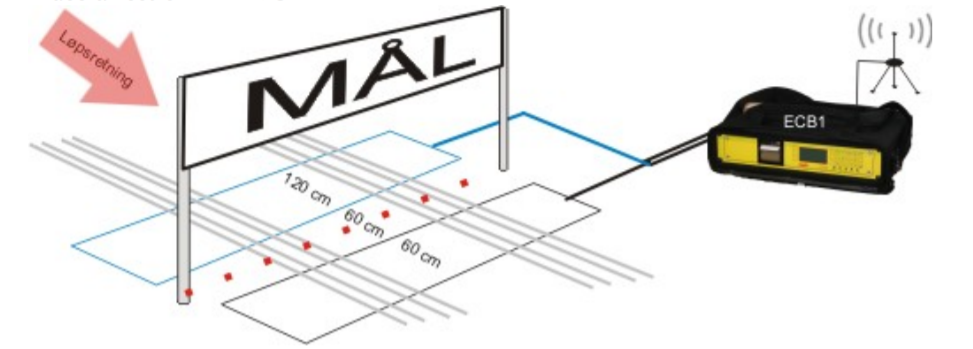

Finish times are measured with help of loops in the ground so that you can pass the finish line at full speed.
The finish-line (where time is taken) should be marked clearly on the ground.
The readout/punch control is done after the finish line.
